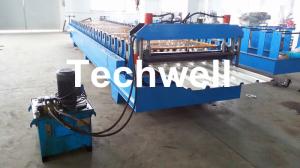

Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000

Name: Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW382001000
Brand: TECHWELL
Price: 1 USD

China Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000 wholesale

Brand Name : TECHWELL

Model Number : TW-38-200-1000

Certification : CE, ISO Certificate

Place of Origin : China

MOQ : 1 Set

Supply Ability : 30 sets per year

Delivery Time : 60 working days

Packaging Details : export package

Roof Model : TW38-200-1000

Material : Color Steel, PPGI

Material Width : 1250mm

Material Thickness : 0.3-0.7mm

Forming Station : 24 Stations

Cutting Type : Hydraulic cutting

Contact Now

TW38-200-1000 Trapezoidal Roof Deck Sheet Roll Forming Machine

Applications of Roof Deck Sheet Panel Roll Forming Machine

Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences and different kinds of greenhouses.

Main Specifications of TW38-200-1000 Trapezoidal Sheet Roll Forming Machine

Trapezoidal Roof Deck Sheet Roll Forming Machine Technical Data
Material specifications	Color Steel Coil, PPGI
	Thickness 0.3-0.7mm
	Yield Strength 350-550Mpa
	Coil width 1250mm
Forming Roller Stations	24 forming stations
Diameter of Forming Shaft	75mm
Forming Speed	0-20m/min
Forming Roller Material	45# Steel, coated with hard chrome 0.05mm
Cutter Material	CR12Mov Mold steel, with quench treatment
Controlling system	PLC with Touch screen & Inverter
Main Motor Power	7.5KW
Cutting Power	3KW
Machine weight	5600Kgs

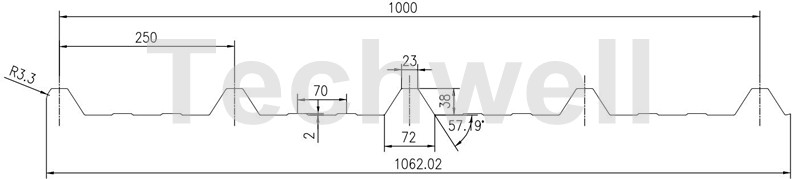

Trapezoidal Profile Drawing

Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000

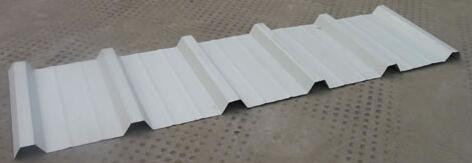

Finished Roof Profile Sheet

Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000

Main Components

Hydraulic Decoiler	1 Unit
Pinch Guiding Device	1 Unit
Roll Forming System	1 Unit
Flying Cutting System	1 Unit
PLC Control Box	1 Unit
Hydraulic Station	1 Unit
Runout Table	1 Unit

Working Flowing

Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000

Souvenir Photo with Customers

Hydraulic cutting Trapezoidal Roof Deck Roofing Sheet Making Machine TW38-200-1000
